VXDIAG VCX FD for GM Ford/Mazda

2024 New VXDIAG VCX FD Diagnostic Tool for GM & Ford/Mazda - 2 in 1 with WIFI, DoIP, and CAN FD Support

The 2024 VXDIAG VCX FD is a cutting-edge diagnostic tool, supporting both GM and Ford/Mazda vehicles with the latest CAN FD protocol. This powerful 2-in-1 diagnostic interface is equipped with a dual-core high-speed processor, ensuring comprehensive diagnostics and programming capabilities for a wide range of vehicles from 2000 to 2024. It provides versatile connectivity options, including USB Type-C, WiFi, WLAN, and DoNet, ensuring ease of use and adaptability for various diagnostic needs.

Key Features

Next-Generation Diagnostic Interface

• CAN FD and DoIP Support: Fully supports multi-channel CAN FD/DoIP and traditional diagnostic protocols, providing compatibility with GM(2000-2024) and Ford(2005-2022)/Mazda(2005-2024) models.
• Dual-Core Processor: Features a 550MHz ARM protocol processor for CAN-FD and traditional BUS protocols, and a 560MHz MIPS network processor for DOIP diagnostics, delivering faster and more efficient communication.

Vehicle Coverage

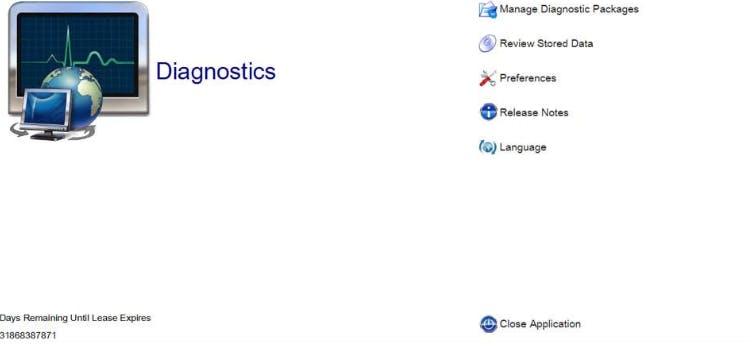

• Supports GM, Ford, and Mazda Models: Compatible with GM GDS2

  V2024.05.08, Tech-2-WIN 16.02.24, Ford IDS V130, and Mazda IDS V131, covering vehicles. (TECH2WIN does not support Opel and Saab.)

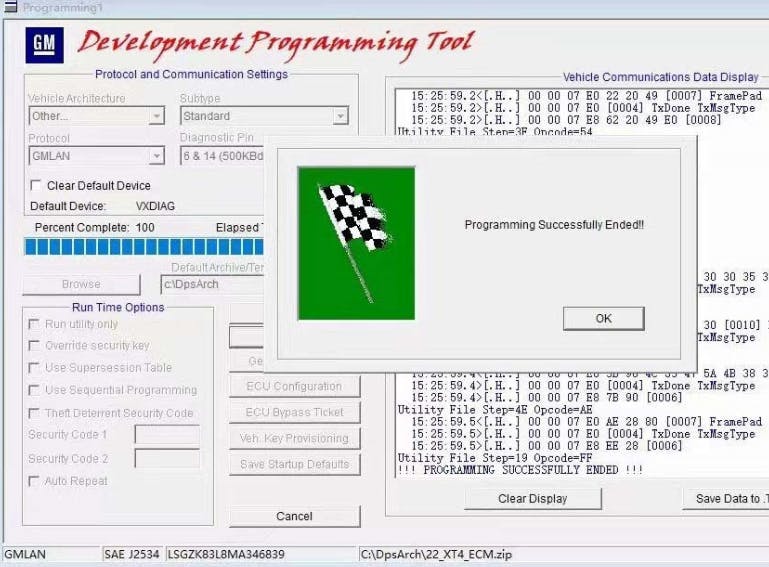

• Service Programming System (SPS/SPS2 Techline Connect)

  • Requirements: SPS programming requires a General Motors (GM) online account.

  • Functionality: Supports pass-through programming for older GM models and Global A platform vehicles.

  • Programming Speed Improvement: Reprogramming speed is 20%-70% faster than with the Tech 2. For example, reprogramming a Tahoe Hybrid with 7 ECUs typically takes 2 hours with the Tech 2, but with the VCX Nano, it only takes 45 minutes, representing a 64% improvement. This significant speed increase allows you to service 10 vehicles in an 8-hour day instead of just 4, greatly enhancing revenue potential.

  Setup Instructions:

  • To use VCX Nano with SPS2 Techline Connect or PSA Service Box for Opel, install the Passthru Driver, and select the device as VXDIAG.

Comprehensive Diagnostic and Programming Capabilities

• OE-Level Diagnostics: Accesses all available ECUs, including PCM, ECM, EPS, PDM, TPM, BCM, ABS, SCCM, and more, enabling full system diagnostics, code reading/clearing, and ECU replacement.
• Bi-Directional Control: Supports actuation tests, system tests, functional tests, and reprogramming, allowing for detailed control over vehicle systems.
• J2534 ECU Programming: Compliant with SAE J2534-1 & J2534-2 standards, enabling ECU programming, software updates, and calibration through PC-based tools.

Advanced ECU Coding and Configuration

• Customization and Performance Enhancement: Perform advanced functions like refreshing hidden features, disabling unwanted functions, enhancing vehicle performance, and customizing OE settings.

Additional Advantages

1. Multi-Language Support: The tool supports a wide range of languages, including English, German, French, Italian, Dutch, Spanish, Swedish, Finnish, Danish, Norwegian, Portuguese (European and Brazilian).
2. Flexible Connectivity: Flexible connectivity options such as USB Type-C, WiFi, WLAN, and DoNet ensure user convenience and versatility.
3. Dual-Mode Diagnosis: Supports both local and super remote diagnostic modes, providing users with flexible and comprehensive diagnostic options.

Supported Services

• Maintenance and Service Functions: Includes Maintenance Light Reset, throttle learning, steering angle learning, brake pad reset, tire pressure reset, ABS exhaust, battery matching, injector coding, DPF regeneration, gearbox learning, and more.

Installation Instructions

1. Software Installation: Download and install the necessary software on a Windows system.
2. Install VX Manager: Download the latest version.
3. Device Connection: Connect the VCX FD device to your computer via USB, WIFI, or RJ45, and to the vehicle's OBD2 port.
4. Install Passthru Driver: Install the driver and check the device license.
5. Begin Diagnosis: Turn on the vehicle's ignition and start diagnosing.

Installation Tip: Disable any antivirus software before installation to avoid interference.

VXDIAG VCX FD Parameters:

Hardware Configuration:

NOTE:
The device supports
GDS/RDS3/TECH2WIN
FORD IDS/MAZDA IDS/FRDS
software, but we do not provide an online account.

Note: TECH2WIN only supports Windows 7 32-bit.

Support BUS Protocol

OBD-II Pin BUS Protocol Coverage

Software Installation and Connection Steps:

If you want to learn about the following:

1. GM GDS2 and Tech2win installation

2. IDS Installation Guide

3. How to connect the device and vehicle

Package Includes

• 1 x VCX-FD Interface
• 1 x Type-C USB Cable
• 1 x RJ45 Lan Converter
• 1 x Paper Case

Still have questions?

1. Want to learn more about the VCX FD?
2. Want to hear more reviews from other buyers?
3. Contact us via online chat!
