WiFi Version VXDIAG VCX NANO for JLR

VXDIAG VCX NANO for Land Rover and Jaguar (WIFI Version)

The VXDIAG VCX NANO is a robust and compact diagnostic tool specifically designed for Jaguar and Land Rover vehicles, covering models from 2007 to 2016. It serves as a direct replacement for OEM tools like the SPX VCM and i-VIEW, offering full diagnostic and programming capabilities in a portable form factor.

Key Features

• OEM Tool Replacement:

  • Serves as a replacement for the SPX VCM and i-VIEW.
  • Supports comprehensive vehicle diagnostics and programming.

• Vehicle Coverage:

  • Compatible with both diesel and gasoline Jaguar and Land Rover models from 2007 to 2016.

• Software and Language Support:

  • Uses JLR SDD Software Version V164.
  • Supports 21 languages, including English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, and Chinese.

• Connectivity Options:

  • Offers both USB and WIFI connectivity for flexible use.

• Updates:

  • Lifetime firmware and license updates are available through a software link, with no locked firmware.

Diagnostic and Programming Capabilities

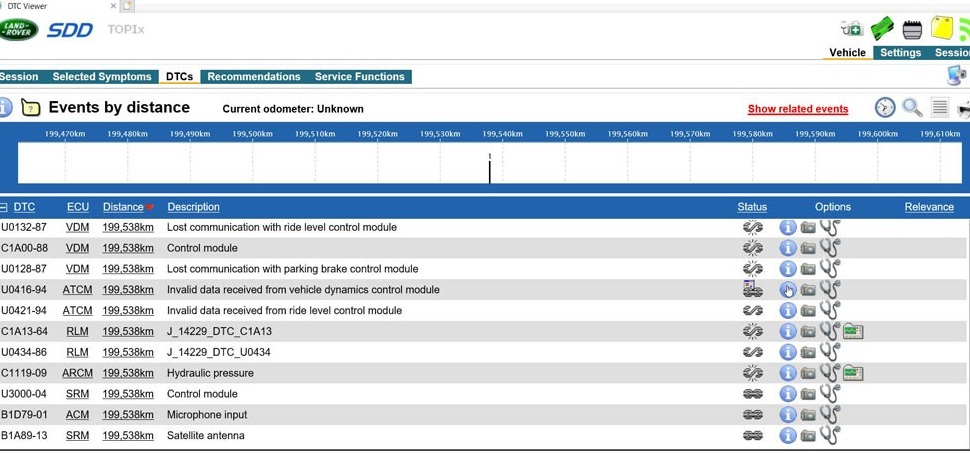

• Fault Code Reading/Resetting:

  • Analyze and reset various fault codes, including those related to service lights, airbags, and ABS.

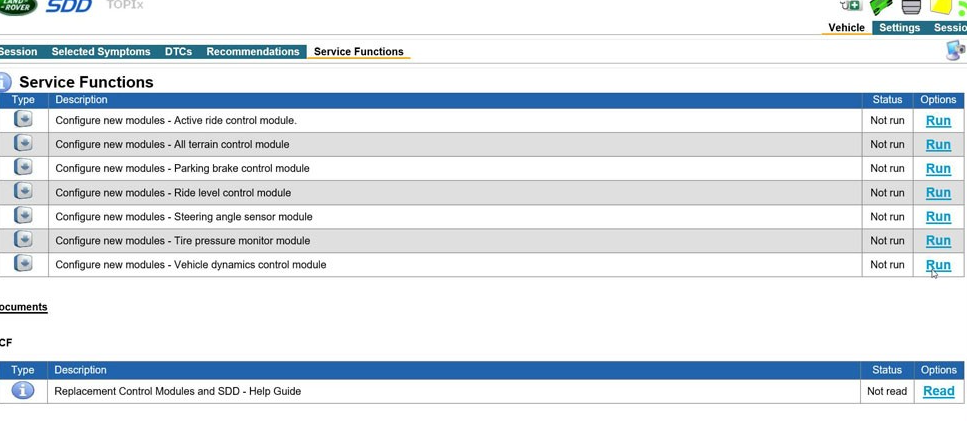

• Programming Modules:

  • Capable of programming modules and personalizing vehicle settings (e.g., ride height, folding wing mirrors).

• Active and Utility Tests:

  • Perform active tests on different vehicle components and execute utility tests for detailed diagnostics.

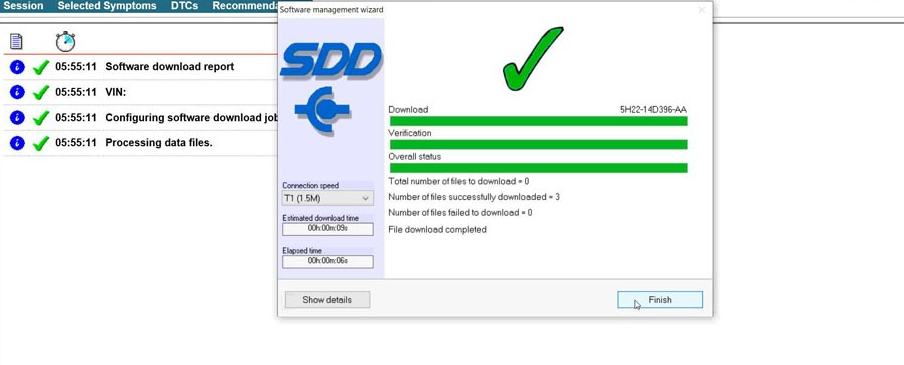

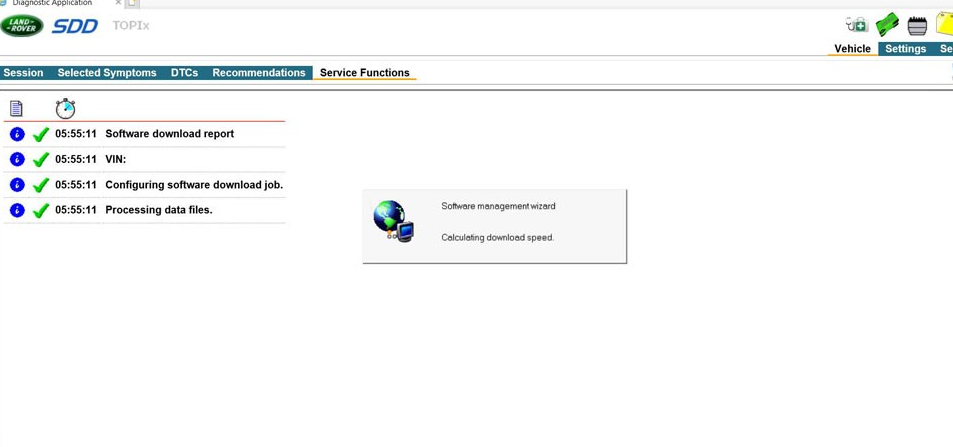

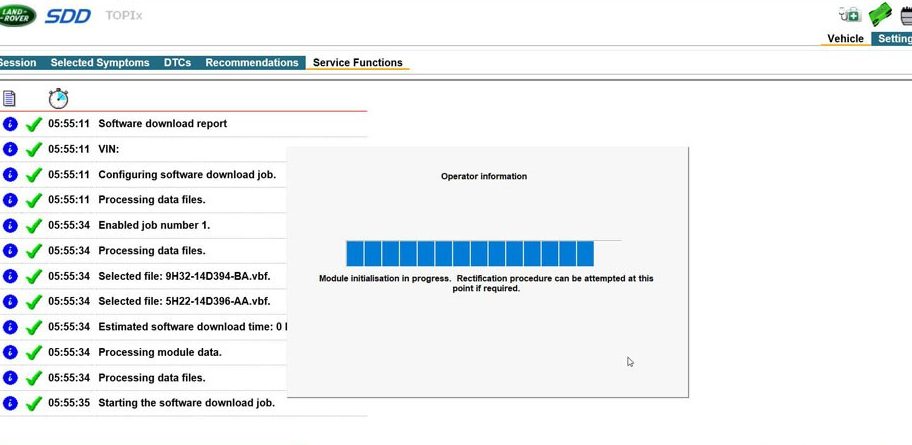

• Reprogramming:

  • Supports reprogramming tasks, including module programming and personalization.

• Real-time Monitoring:

  • Monitor vehicle systems in real-time and view comprehensive data lists for various control systems.

JLR SDD Diagnostic Features

NOTE: The device supports SDD software, but we do not provide an online account.

Special Functions

• EPB (Electrical Park Brake system):

  • Manages the electronic braking system for maintenance, including brake fluid control and brake pad management.

• SAS (Steering Angle Sensor):

  • Calibrates the Steering Angle Sensor, storing the current steering wheel position as straight-ahead.

• TPMS (Tire Pressure Monitoring System):

  • Allows quick lookup of tire sensor IDs from the ECU and performs TPMS programming and resets.

• ABS (Antilock Brake System):

  • Conducts bi-directional tests for both the ABS and the Supplemental Restraint System.

• ECU (Electronic Control Unit):

  • Reads and details retrieved ECU information.

• DPF Regeneration (Diesel Particulate Filter):

  • Supports various functions related to the Diesel Particulate Filter system.

• BMS (Battery Maintenance System):

  • Re-matches the control module and monitoring sensor for accurate battery detection.

Additional Notes

• Software Compatibility:

  • The VCX NANO supports JLR SDD software only. For DoIP models that require Pathfinder software, consider the VCX SE JLR.

• Offline Programming:

  • Starting from version 137, SDD cannot perform offline programming (e.g., CCF and Seed code). Alternative methods are required.
• Immobiliser programming requires an online account. Other programming don't need to be done online, but you need connect voltage stabilizer to make sure your voltage is stable.

• JLR Topix Cloud banned all 3rd party devices. So vxdiag for jlr device is not working with Topix Cloud anymore.

• Changing Software Language:

  • Navigate to  Settings -> User Preferences -> Language within the JLR SDD software and select your preferred language.

• Supports the following protocols:

  • ISO9141 (K-Line)
  • ISO14230-2 (K-Line)
  • ISO15765 (CAN)
  • Single Wire CAN (GMLAN)
  • Support 4 CAN, 3 High Speed CAN and Single Wire CAN.
  • Programming voltage: 5V ~ 20V FEPs output.
  • Support multi - channels work continuously, for example: 2 wire CAN or K - Line work at same time.
  • Large memory to increase date throughput, 32KByte can be reached by single transfer

  VCX NANO JLR Hardware Features:

  • Diagnostic hardware uses a dual-core processor, compliant with all vehicles protocols.
  • Compatible with 12V and 24V communication
  • Hardware meets European CE and American FCC standards
  • Firmware can be updated for continuous improvement

Package Includes

• 1 x VXDiag VCX NANO OBD2 Scanner Main Unit
• 1 x USB Cable
